PCB

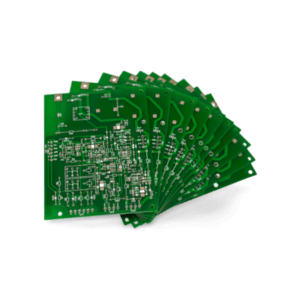

Prototype PCB
| Features | |
|---|---|
Delivery Format | Single / Panel |
PCB Color | Green |
Silkscreen Color | White |
Surface Finish | HASL-Leaded / HASL-LeadFree / ENIG |
Outer Copper Thickness | 1oz / 2oz |
Inner Copper Thickness | 0.5oz / 1oz |
Hole Size | Min. 0.15mm |

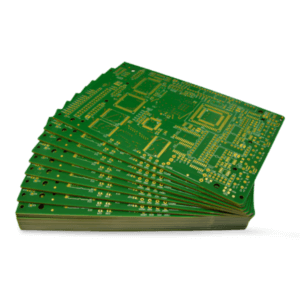

Rigid PCB
| Features | |
|---|---|
Base Material | FR-4 / Metal Core / Rogers / Taconic / Arlon / Nelco / Isola / Halogen Free / PTFE |
Delivery Format | Single / Panelization |
Layers | 1-40 Layers |
PCB Color | Green / Purple / Red / Yellow / Blue / White / Black /
Matte Black / Matte Green / Matte Blue / Matte Red |
Silkscreen | White / Black / Yellow / None |
Board Thickness | 0.2-7.0mm |
Drilling Size | 0.15-6.5mm |
Outer Copper Thickness | 0.5-13oz |
Inner Copper Thickness | 0.5-6oz |
Surface Finish | HASL-Leaded / HASL-LeadFree / ENIG-1U / ENIG-2U /
Immersion Silver / OSP / Flash Gold / Immersion Tin / Hard Gold |
Via Covering | Tented / Epoxy Filled-Untented / Plugged / Epoxy Filled-Capped |
IPC Class | Class-II / Class-III |
Rigid-Flex PCB
| Rigid-Flex Part Features | |
|---|---|
Base Material | Polyimide Flex+FR4 |
Delivery Format | Single / Panelization |
Layers | 2-32 Layers |
Rigid-Flex Thickness | 0.4-3.2mm |
Min. Hole Size | 0.15mm |
Surface Finish | ENIG / OSP / Immersion Silver |
Via Process | Tented / Untented / Plugged Vias With Solder Mask |
| Flex Part Features | |
|---|---|
Layers | 1-10 Layers |
FPC Thickness | 0.1-0.4mm |
Coverlay Color | Yellow / White / Black / None |
Silkscreen Color | White / Black / None |
Finished Copper | 0.5-2oz |
| Rigid Part Features | |
|---|---|
PCB Color | Green / Red / Yellow / Blue / White / Black / None |
Silkscreen Color | White / Black / None |
Finished Copper Thickness | 1-4oz |

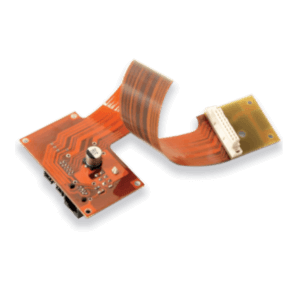

Flex PCB
| Features | |
|---|---|
Layers | 1-8 Layers |
Delivery Format | Single / Panelization |
Base Material | Polyimide Flex / PET ( Transparent) |
FPC Thickness | 0.1-0.3mm |
Min Hole Size | 0.2mm |
Coverlay Color | Yellow / White / Black / None |
Silkscreen Color | White / Black / None |
Stiffener Side | Top / Bottom / Both Sides / Without Stiffener |
Surface Finish | ENIG / OSP / Immersion Silver / Immersion Tin |
Finished Copper | 0.5-2oz |
EMI Shielding Film | HCF-6000G / PC800 / Without EMI Shielding Film |
3M/Tesa Tape | 3M467 /Tesa8853 / Tesa8854 / 3M9495LE / Without Tesa Tape |

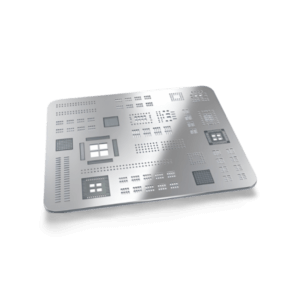

Stencil PCB
| Standart Framework Steel Stencil Features | |
|---|---|
Dimensions | 584mm x 584mm |
Stencil Side | Top + Bottom On Single Stencil |
Polishing Process | Sanding |
Fiducials | Etched Half Into Board |
| Selectable Stencil Options | |
|---|---|
Stencil Side | Top + Bottom Side On Single Stencil /
Top Stencil / Bottom Stencil /
Top & Bottom Stencil On Different Stencil |
Polishing Process | Sanding / Etching / Electropolishing |
Fiducials | No Fiducial / Etched Through /
Etched Half Into Board |
| No-Framework Steel Stencil Dimensions |
|---|
380mm x 280mm |
420mm x 320mm |
450mm x 350mm |
520mm x 420mm |
460mm x 460mm |
| Framework Steel Stencil Dimensions | |
|---|---|
470mm x 370mm | 700mm x 500mm |
400mm x 300mm | 1000mm x 400m |
520mm x 420mm | 800mm x 500mm |
550mm x 450mm | 1200mm x 400mm |
584mm x 584mm | 1400mm x 400mm |
650mm x 550mm | 1500mm x 500mm |
736mm x 736mm | 1200mm x 500mm |
600mm x 400mm | 1400mm x 500mm |
800mm x 400mm |
